PCB Assembly

We offer a range of PCB Assembly services from our advanced, modern manufacturing facility based in the UK. Catering to a wide range of sectors, our capabilities range from rapid prototyping to medium-high volume PCB assembly.

Whether you have a new design or an existing product, we will support your manufacturing requirements, meeting your price and delivery expectations.

SMT Assembly
PTH Assembly
Surface Mount

Service Details

  • Surface Mount Technology - Pick & Place Lines with Reflow Ovens
  • PTH Assembly (Conventional Through Hole) - Hand Assembly, Wave Solder and Selective Soldering
  • AOI (Automated Optical Inspection) - In-line and Off-line

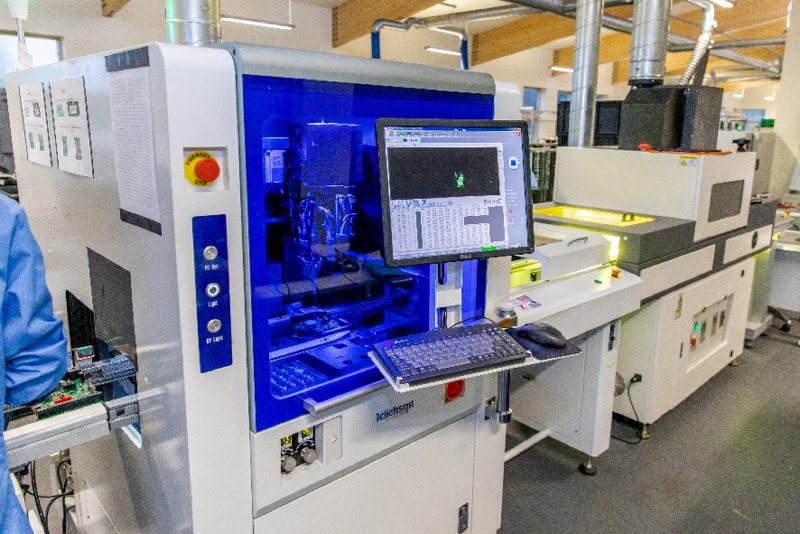

  • Selective Conformal Coating (Automated with UV Cure Oven)
  • Manual Conformal Coating
  • RoHS / Non-RoHS
  • Manufacture to Defence, Aerospace and Harsh Environment Standards
  • DFMT (Design for Manufacture & Test) Support
  • 3D and X-Ray Inspection (360x Magnification)
  • Wash plant and zero-ion cleanliness/contamination tester
  • Staff Trained to IPC 610 Class 3

Frequently Asked Questions

What size of components can you place?

We can go down to 0201 component sizes.

What files do I need to provide to receive an accurate quotation?
  • PCB Gerber files
  • BOM (.XLS) with Manufacturers Names, Part Numbers, Description and Quantity
  • XYZ data with origin point specified (if possible)
  • Any additional requirements or instructions
Do you accept free issue material kits for PCB Assembly?

Yes, if you already have stock of all parts we can offer full assembly and testing (if required) services using the parts provided. Alternatively, let us take the procurement pain off your hands for any future builds.

Can you fit PTH (Plated Through Hole) components?

We have wave solder, selective soldering and hand assembly stations, allowing us to fit PTH components from low to high volume with high precision.

Can you create custom solder profiles?

Yes, using our solder star data logger we can take real time temperature measurements of each zone in our reflow oven. This allows us to tailor the reflow profile specifically for your PCB.

Can you offer full traceability of assembled PCBs?

We can track customer orders through each stage of our production process. Bare boards will be serialised at incoming inspection. Images are captured during AOI (Automated Optical Inspection) and at final assembly stage before shipping.

Our Mission

Our core purpose is to create and provide high quality products, services and processes. To achieve this, we focus on innovation and continual improvement using the rich knowledge source within our company.

Through collaboration with partners, we aim to be a leading innovator and a trusted provider of these products and services in all sectors that we serve.

We currently manufacture for a range of sectors including:

  • Aerospace Defence & Aerospace Defence
  • Oil & Gas
  • Mobility & Medical
  • Consumer Products
  • Industrial & Agricultural
  • Automotive
